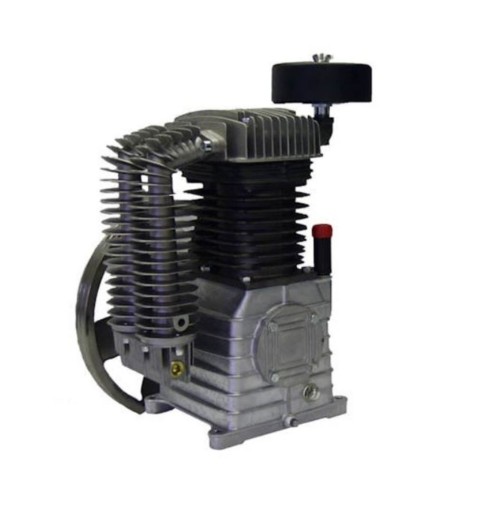

Rolair K30 2-Stage Compressor Pump with Flywheel
- Brand: Rolair
- Product Code: PMP22K30CH
- Availability: In Stock
Rolair K30 2-Stage Compressor Pump with Flywheel
The Rolair K30 2-Stage Compressor Pump with Flywheel is an excellent choice for saving yourself the trouble of manually rebuilding your old compressor. It is a whole pump assembly that comes with a flywheel, cast iron cylinders, oil drain extension, after-cooler and intake filter assembly. The cast aluminum crankcase and head of the replacement compressor pump extend lifespan by running at a lower temperature. It has an oil capacity of 47 ounces and runs at 1100 RPM for greater efficiency and less wear and tear. With a footprint of 8.97 x 7.48 inches, the flywheel has a 15.16-inch diameter, and the stroke measures 3.31 inches for space saving power. The Rolair compressor pump is a direct replacement for models 5230K30CS, V5312K30, H5312K30, H75160K30, V75180K30, V5112K30, H5112K30, V5360K30, V5180K30, H5180K30, H5360K30, V5380K30, H5380K30, H75180K30, V75112K30, H75112K30, H75360K30, V75380K30, V75312K30, 8422HK30, 8230HK30, V5160K30, H5160K30, 13GR30HK30. It also fits other OEM models. It has a maximum pressure of 200 psi, making it perfect for many different projects.
Features:
- Two cylinder compressor pump assembly is designed as a total pump replacement
- Complete with cast iron cylinders, flywheel, after-cooler, oil drain extension and intake filter assembly
- 47-ounce oil capacity
- Rolair compressor pump operates at 1100 RPM
- Footprint: 8.97 x 7.48 inches
- Flywheel diameter: 15.16 inches
- Stroke: 3.31 inches
- Maximum of 200 psi
- Cast aluminum crankcase and head lower operating temperature
- Direct replacement for many OEM models
SPECIFICATION:
| Specification | Details |
|---|---|
| Brand Name | Rolair |
| Air Compressor Pump Design | Oil Lubricated |
| Assembled Weight (lbs) | 83.8 |
| California Proposition 65 Warning Required | Yes |
| Capacity | Oil: 47.0 Oz |
| Country of Origin | Italy |
| Dry Weight (lbs) | 83.8 |
| Height (in) | 18.7 |
| Horsepower (hp) | 5.0, 7.5 (Electric) & 8.0, 9.0, 11.0, 13.0 (Gas) |
| MFG Part # (OEM) | PMP22K30CH |
| Material | Cast Iron & Cast Aluminum |
| Maximum Pressure Rating (psi) | 200 |
| Package Contents | K30 2-Stage Compressor Pump with Flywheel |
| Package Depth | 12 |
| Package Height | 4 |
| Package Weight | 95.0 |
| Package Weight (lbs) | 95 |
| Package Width | 12 |
| Phase | 1 |
| Product Condition | New |
| RPM | 1100.0 |
| Shut Off PSI | 175.0 |
| Stroke Length (in) | 3.31 |
| Switch Type | Switchless |
| UPC | 662865009576 |
| Warranty Type | 30 Day |
