Powermatic 6 In. Jointer with Helical Cutter Head
- Brand: Powermatic
- Product Code: PM9-1791317K
- Availability: In Stock

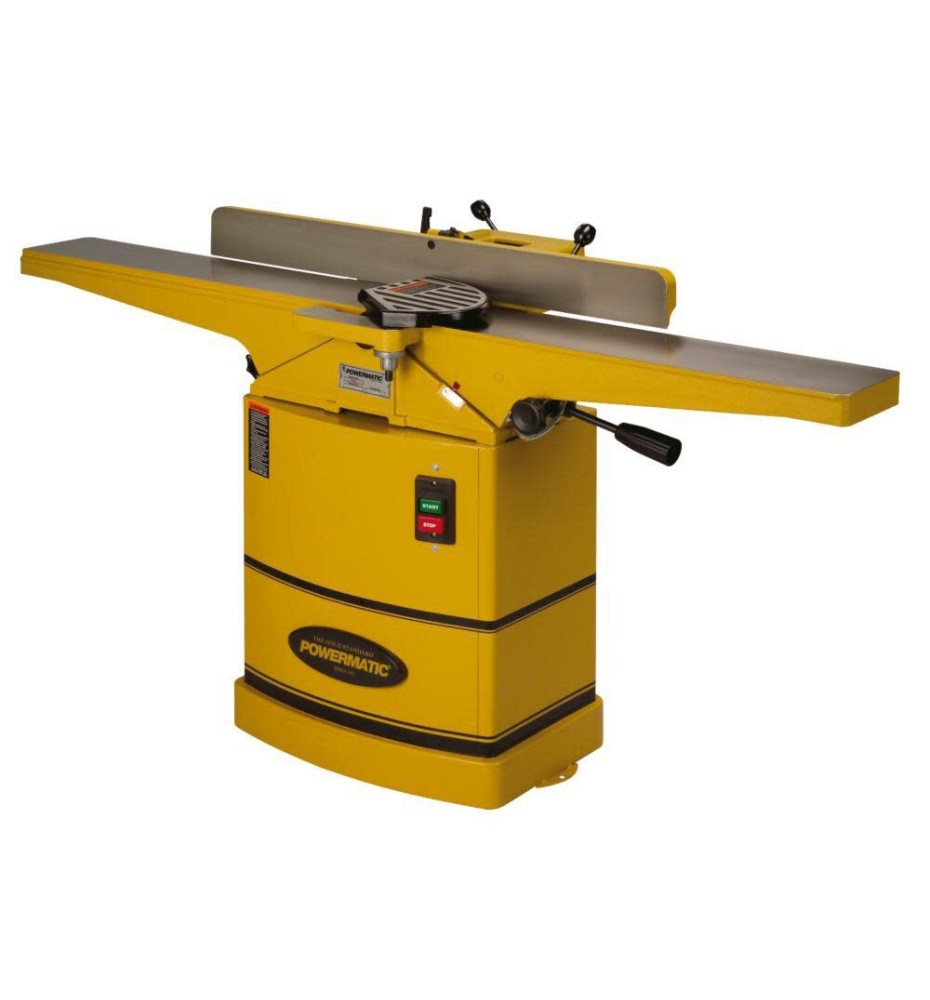

Powermatic 6 In. Jointer with Helical Cutter Head

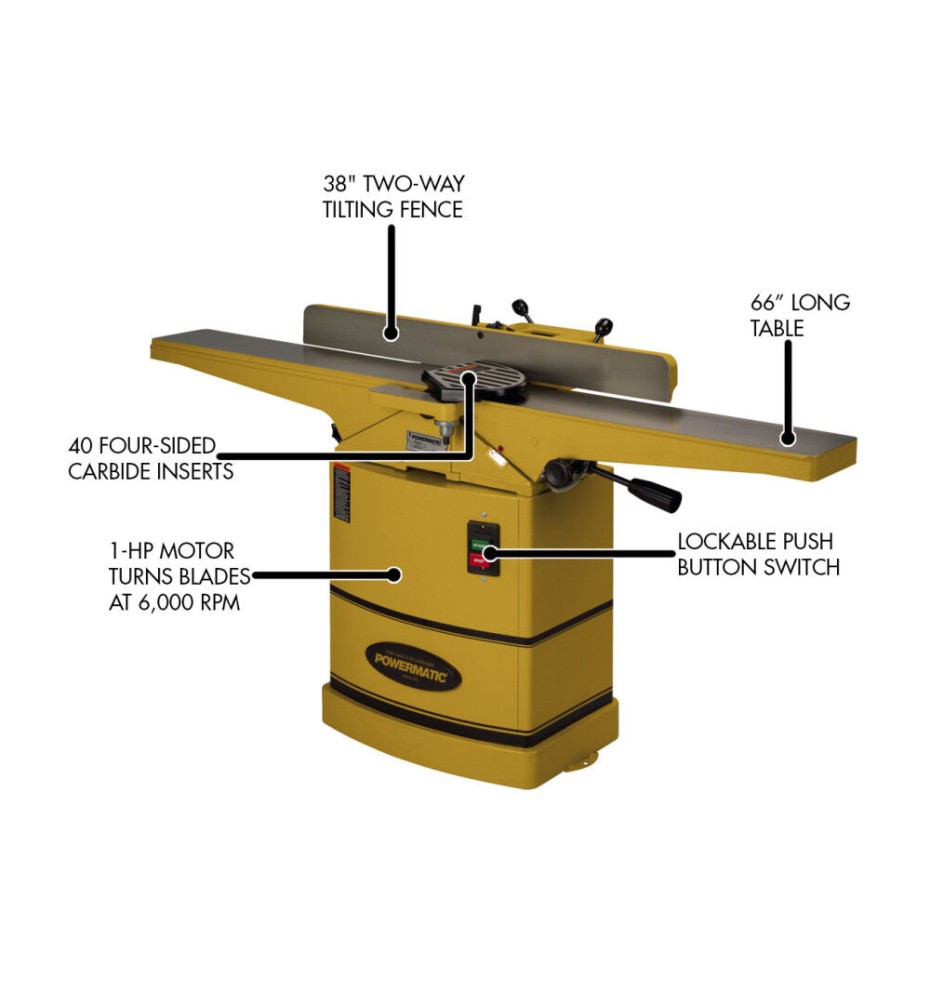

The 54HH Jointer, 1HP 1Ph 115/230V, from Powermatic, helps you create sharp, square edges on the corners of your board for greater consistency. It has a 1hp motor that runs the helical cutterhead at a maximum speed of 6,000 rpm for faster task completion. This Powermatic 6-inch jointer has 66-inch long adjustable tables on both the infeed and outfeed to help balance larger pieces. The fence tilts in two directions so you can make 90-degree or beveled cuts. Center-mounted controls make it easy to activate or adjust the Powermatic jointer's settings quickly and easily. A helical cutterhead with carbide inserts powers through tough material to make smoother boards out of rough stock.
Features:
- Powermatic 6-inch jointer comes with push blocks and cutterhead guard
- Squares board corners to make them suitable for use in any project
- Powermatic jointer's 1hp motor provides a top speed of 6,000 rpm
- 66-inch outfeed and infeed adjustable tables make it easy to balance boards

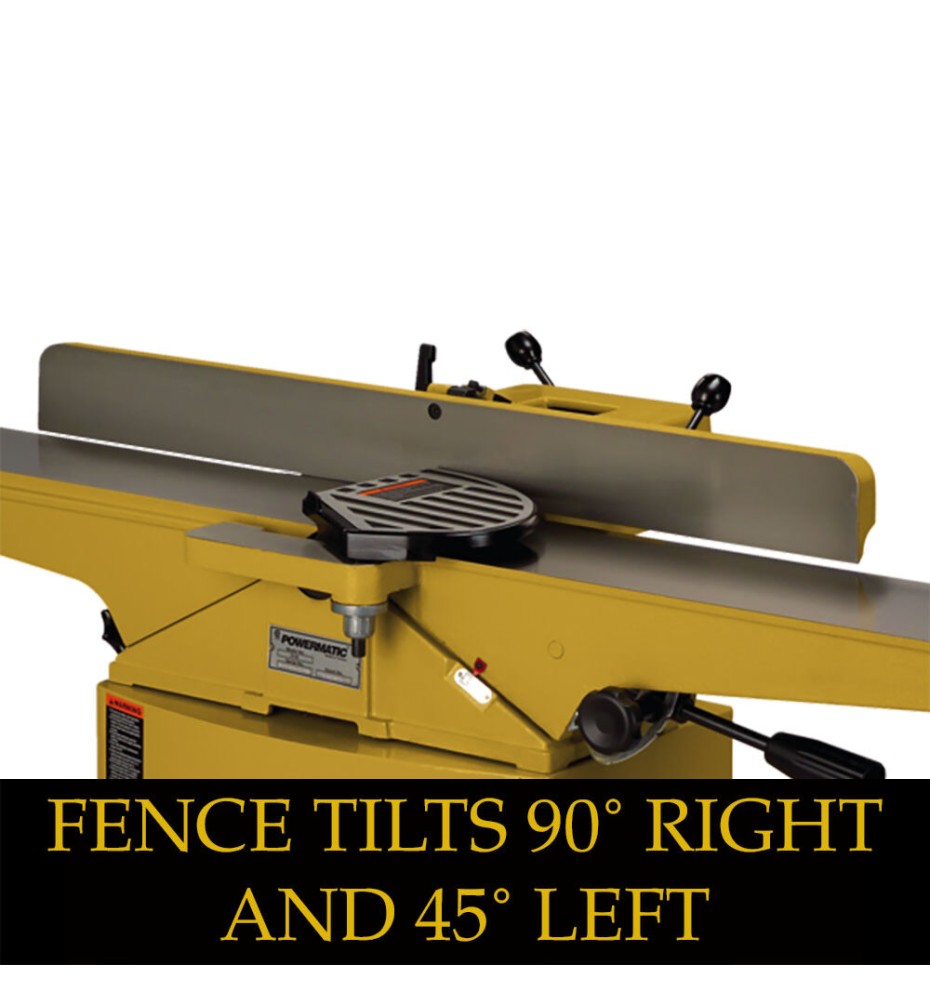

- Tilting fence allows for beveled or perpendicular cuts

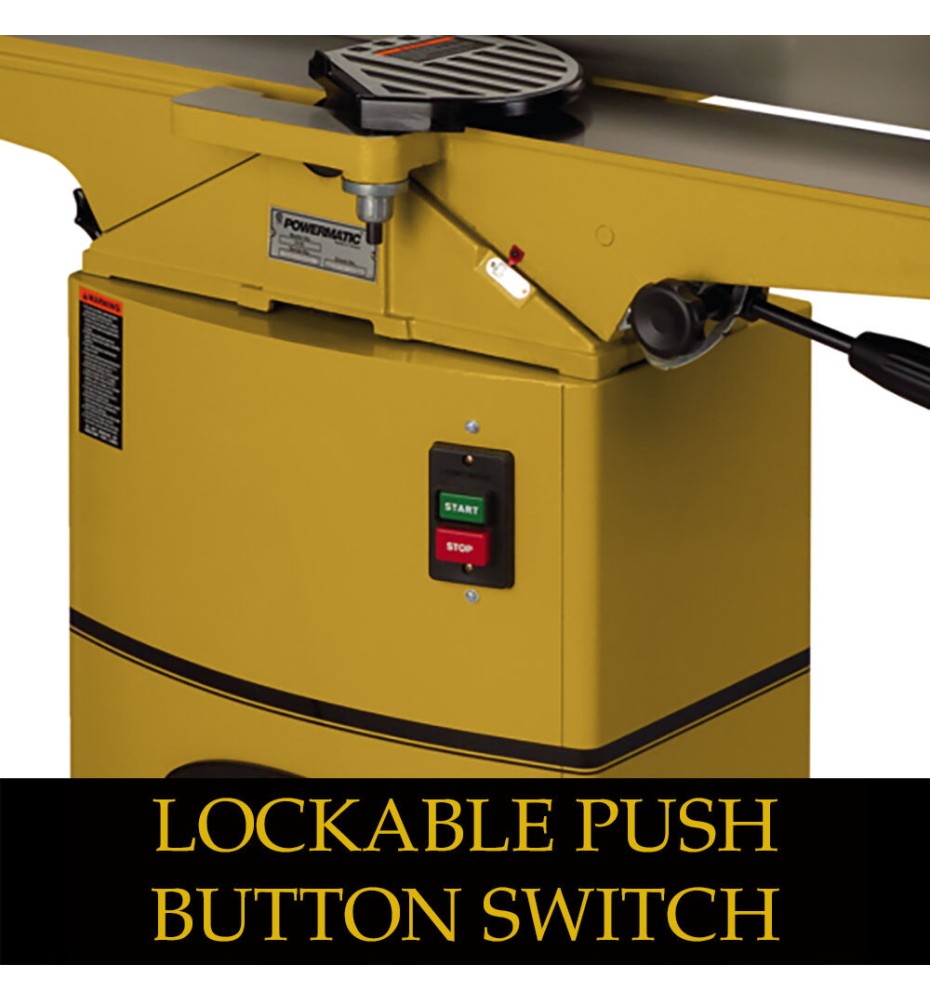

- Center-mounted controls for convenient access
- Helical cutterhead jointer's carbide inserts are tough enough to handle hard material
- 5-year warranty for residential use; 2-year warranty for commercial applications
SPECIFICATION:
| Specification | Details |
|---|---|
| Brand Name | Powermatic |
| Amperage (A) | 13 |
| Assembled Weight (lbs) | 317 |
| Bench or Stationary | Stationary |
| Blade Count | 40 |
| Blade Material | Steel |
| Blade Width (in) | 0 |
| California Proposition 65 Warning Required | Yes |
| Color | Gold |
| Country of Origin | Taiwan |
| CSA Certified | No |
| Drive Motor System | Electric |
| Dust Port | Yes |
| Dust Port Outside Diameter (in) | 4 |
| ETL Listed | No |
| Horsepower (hp) | 1 |
| Length | 8 ft |
| MFG Part # (OEM) | PM9-1791317K |
| Material | Cast Iron |
| Maximum Cutting Depth (in) | 0.5 |
| Maximum Speed (rpm) | 6000 |
| Package Contents | Two Cartons: Stand (Jointer Stand, Door with Mounting Hardware, Dust Chute with Mounting Hardware) Main Unit (Jointer Assembly, Fence Assembly, Pulley Cover, Belt, Cutter head Guard, 2 Push Blocks, Fence Handle and hardware package) |
| Product Condition | New |
| Speeds | 1 |
| Spindle Lock | No |
| Stand Included | No |
| Switch Type | Push Button |
| Table Height (in) | 31.5 |
| Table Length (in) | 66 |
| Table Width (in) | 7.25 |
| UL Listed | No |
| UPC | 662755955976 |
| Voltage | 110/220 Volts |
| Warranty Type | 5 Years |
| Weight (lbs) | 336 |
