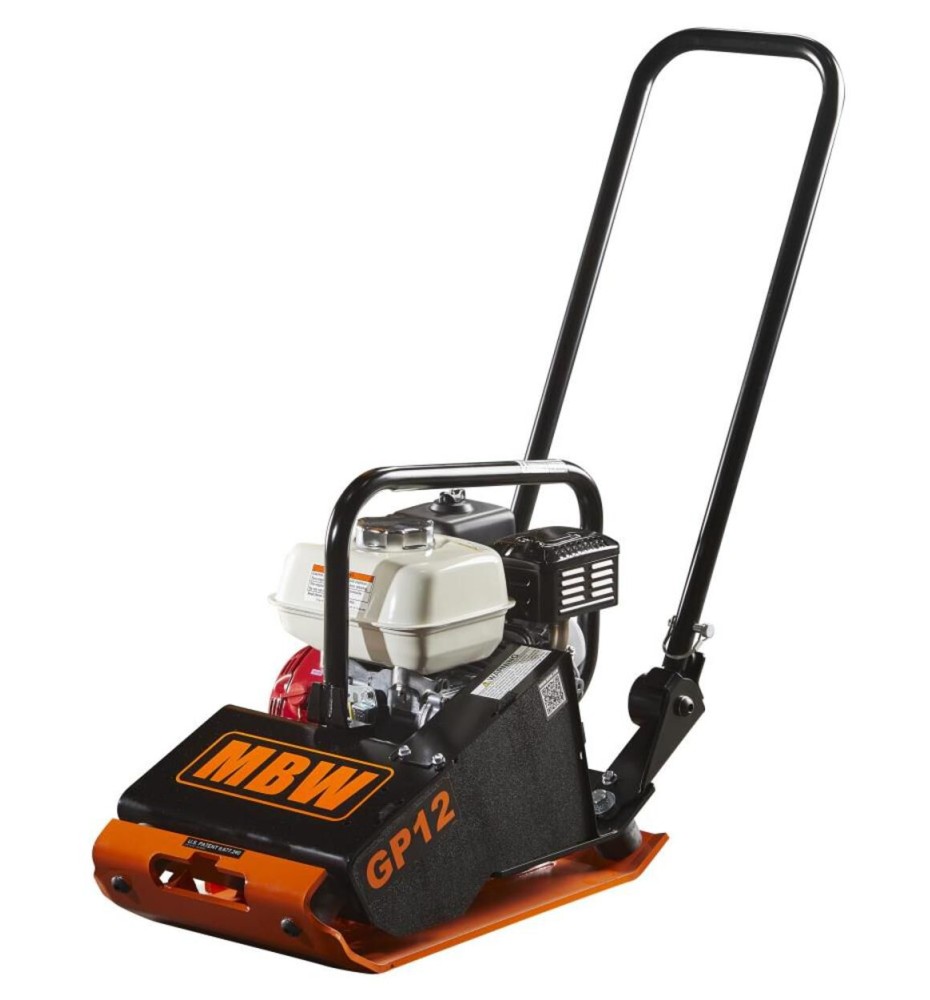

MBW GP12 1000 Series - Single Direction 12in Vibratory Plate
- Brand: MBW
- Product Code: 12GHC
- Availability: In Stock
MBW GP12 1000 Series - Single Direction 12in Vibratory Plate
The 1000 series of economical vibratory plates are portable and offer outstanding compaction performance. With amplitudes up to .067 In. , centrifugal force up to 2780 lb and travel speeds up to 83 Ft. per minute, these plates are ideal in confined areas of granular soils including sands, bank run, and gravel. Accompanied by intense vibration, this series of plates are ideally suited as an economical alternative for small to medium compaction applications.
Features
- Honda GX120 engine - includes roll cage
- Plate size: 13 x 22.5 In.
- Operating weight: 133 lbs
- Travel speed: up to 83 ft /min
- One piece exciter with self cleaning open base plate housing design
- Optional UHMW paving pad for interlocking paving blocks
- Optional wheel kit available
SPECIFICATION :
| Specification | Details |
|---|---|
| Brand Name | MBW |
| Assembled Weight (lbs) | 133.0 |
| California Proposition 65 Warning Required | Yes |
| Country of Origin | United States |
| Engine | Honda GX120 |
| Engine Starting Method | Recoil |
| MFG Part # (OEM) | 12GHC |
| Overall Height (in) | 36.0 |
| Overall Length (in) | 28.0 |
| Overall Weight (lbs) | 133.0 |
| Overall Width (in) | 13.0 |
| Package Contents | (1) Plate Compactor, Warranty Card, Operator's Manual (2) Handle Assembly Instructions. |
| Product Condition | New |
| Shipping Weight (lbs) | 137 |
| UPC | 400200003373 |
| Warranty Type | 1 Year |
| Weight (lbs) | 134 |
