Laguna Tools DX:20 20 Inch 2.5 HP 220V Drill Press with Touch Screen
- Brand: Laguna Tools
- Product Code: MDP20-2
- Availability: In Stock

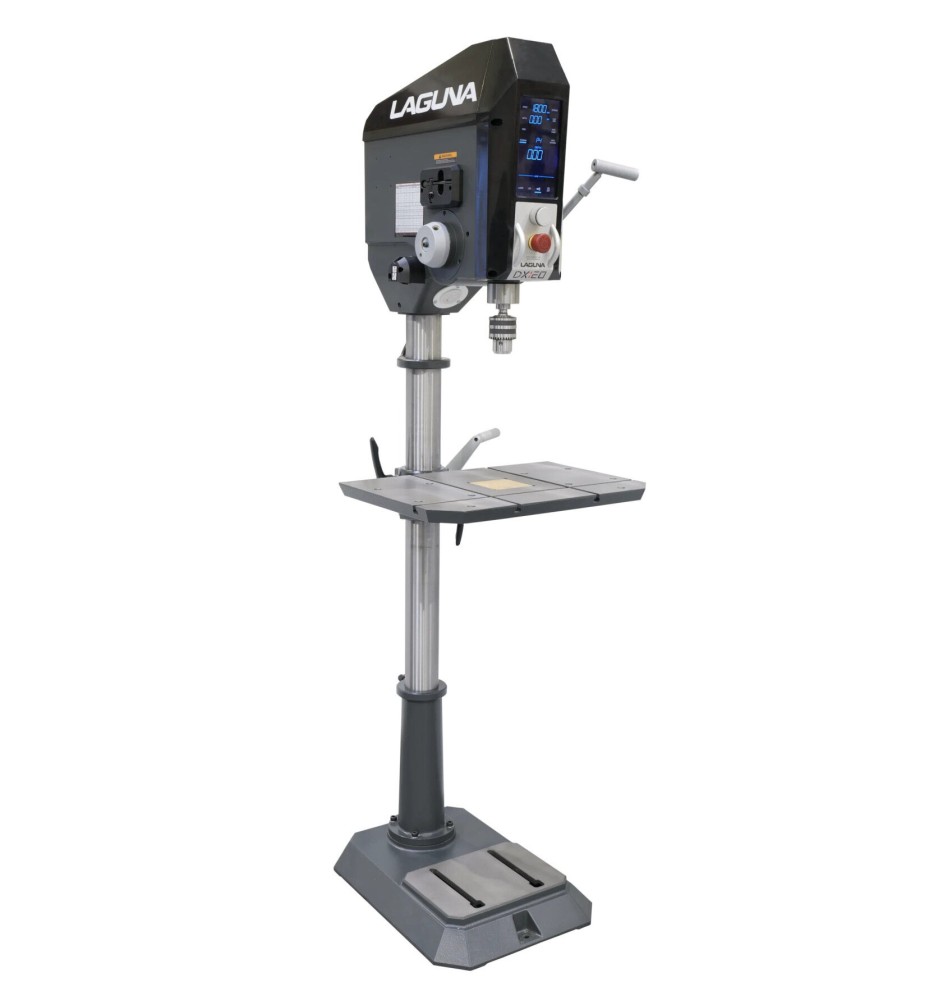

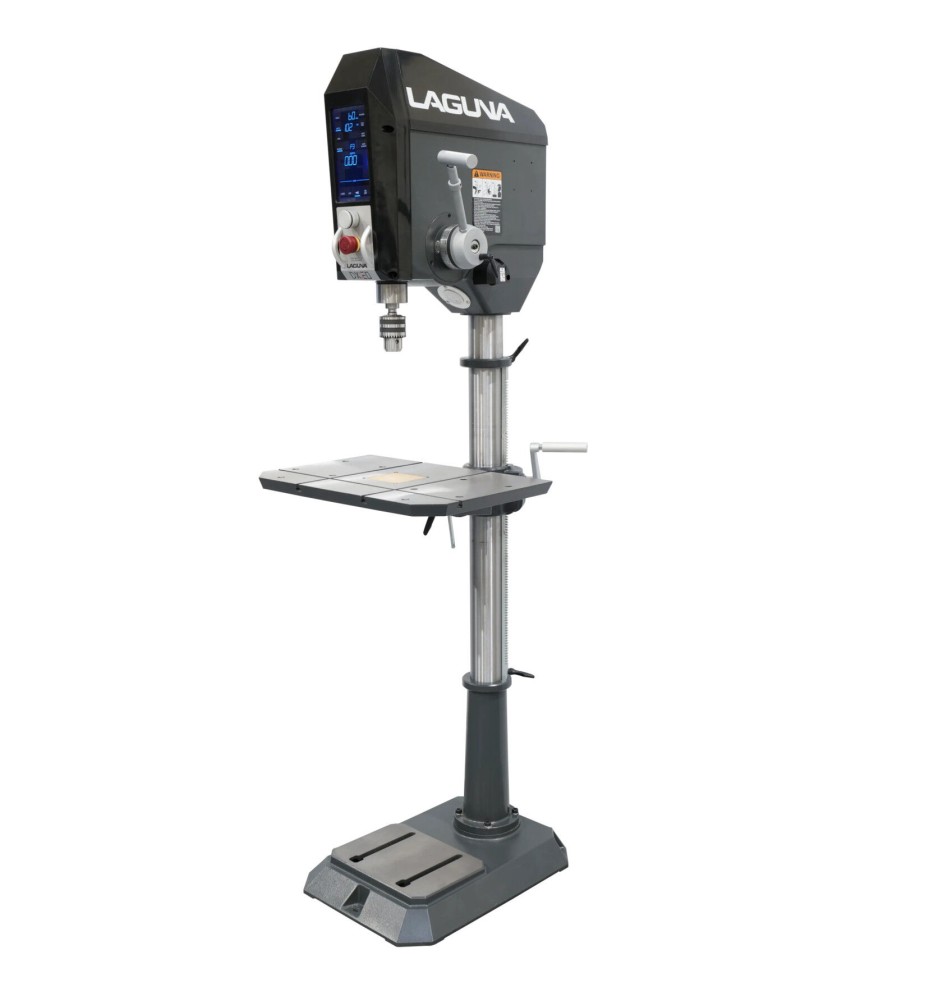

Laguna Tools DX:20 20 Inch 2.5 HP 220V Drill Press with Touch Screen
Building on the proven performance of the Laguna DP 20, the DX 20 Drill Press delivers the same intelligent features and precision controls with the added benefit of a more powerful 2.5 HP motor. Experience unparalleled efficiency with the Auto-Start function, which activates the drill press when the quill is lowered and stops it when raised.
Features:
- Touch Screen Smart Panel: Intuitive interface with blue LCD digital readout
- 2.5HP PWM Motor: Constant torque with forward and reverse functions
- Auto-Start Function: Starts and stops with the movement of the quill
- Precision Depth Control: Electronic depth setting

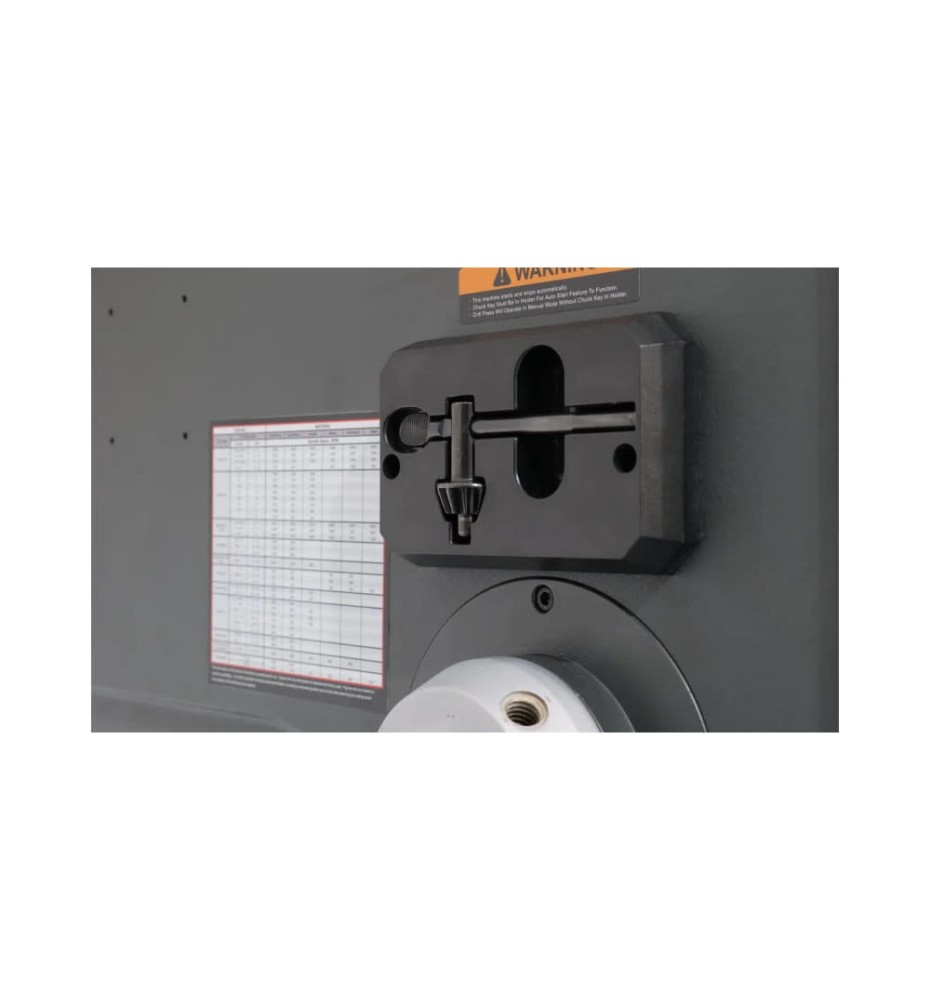

- Advanced Safety Features: Chuck key holder with a sensor that locks out Auto-Start function during bit changes
- Customizable Memory Settings: Five programmable speed and depth settings
- Extended Quill Travel: 6 inches of precise drilling capacity

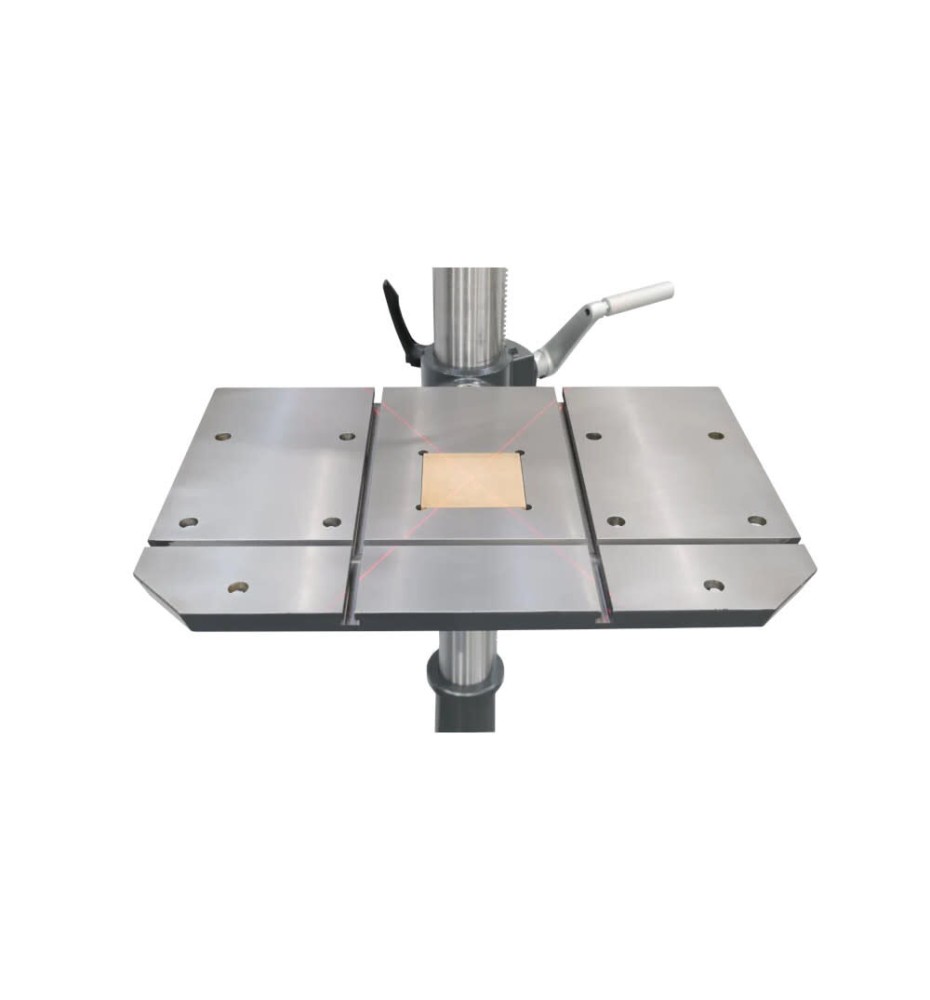

- Versatile Worktable: Large 15 In. x 22 In. cast iron table tilts up to 90 Deg left and right, rotates 360 Deg, with T-slots and 10 clamping holes

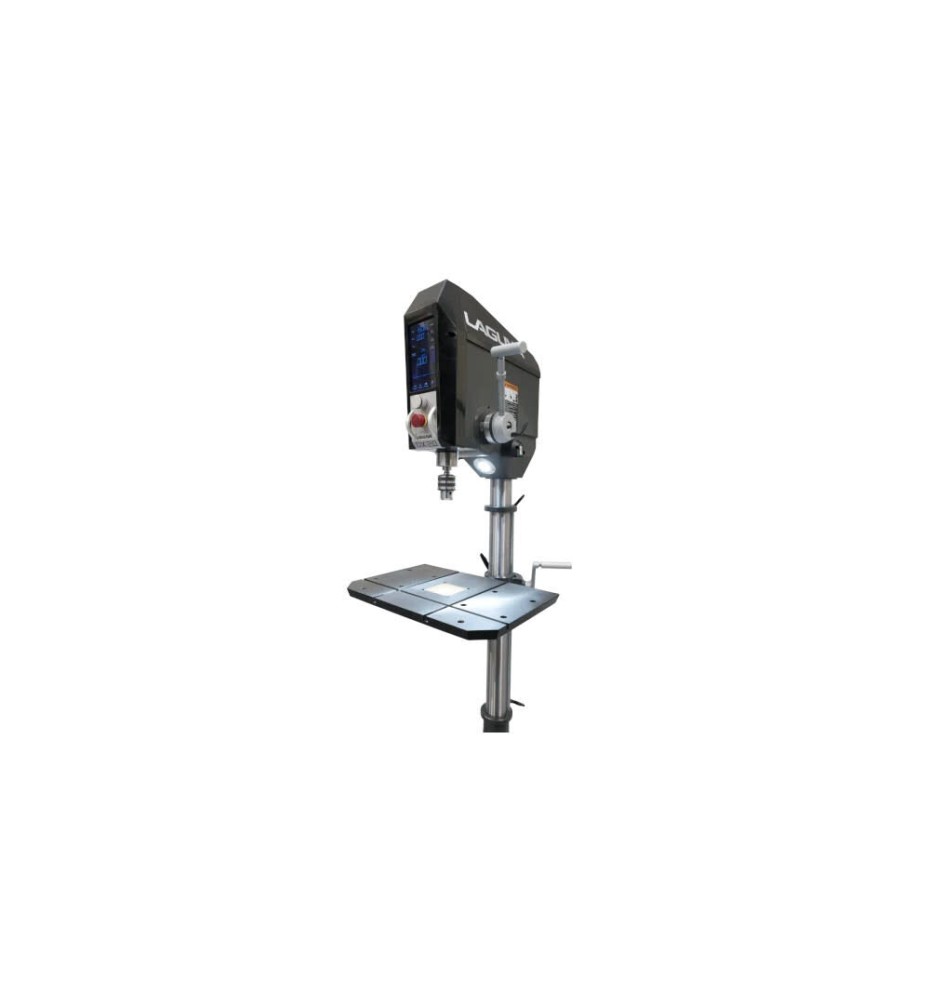

- High-Output LED Work Light: Onboard 5W LED for optimal visibility
- Crosshair Lasers: Ensures precise material positioning.
SPECIFICATION:
| Specification | Details |
|---|---|
| Brand Name | Laguna Tools |
| Amperage (A) | 15 |
| Assembled Weight (lbs) | 304 |
| Country of Origin | China |
| Horsepower (hp) | 2.5 |
| MFG Part # (OEM) | MDP20-2 |
| Material | Poly-Groove Drive Belt |
| Package Contents | Drill Press |
| Product Condition | New |
| Restrictions | CA Prop 65 |
| Size | 6 Ft. Power Cord, Base Size: 22.83 In. x 16.92 In., 3.15 In. Column Diameter, Table: 15 In. x 22 In., 30 In. Spindle to Table, 49.5 In. Spindle to Base |
| Speeds | Electronic Variable |
| UPC | 195444296857 |
| Warranty Type | No Manufacturer's Warranty |
| Weight (lbs) | 326 |
