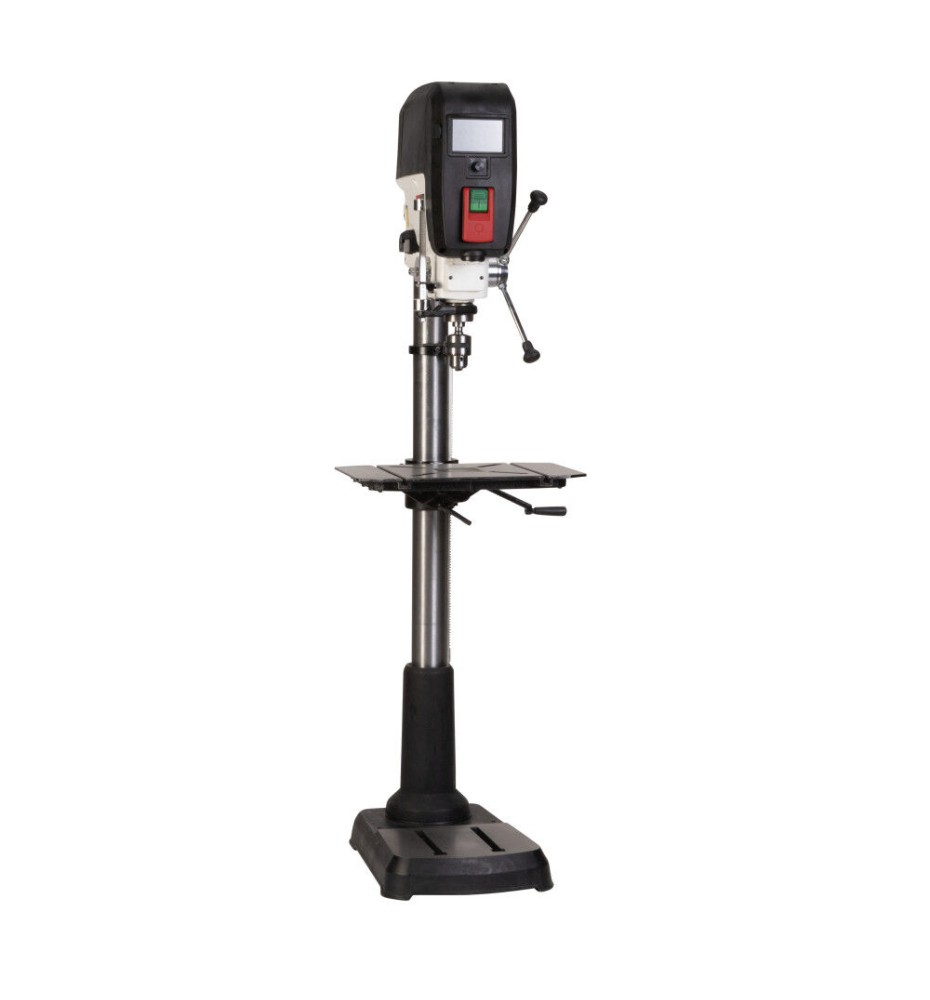

JET JDP-20S 20 Inch Smart Drill Press
- Brand: JET
- Product Code: JT1-2060
- Availability: In Stock
JET JDP-20S 20 Inch Smart Drill Press
JT1-2060 JET 20in. Smart Drill Press is a drill press for any type of woodworker. It's 5" touchscreen gives users control at the touch of their fingertips and confidence to perform multiple projects.
Features:
- 5" Intuitive Touch-Screen Interface: Control at your fingertips for seamless operation.
- Versatile Performance: 20" capacity and 6" quill travel to tackle any project.
- Customizable Efficiency: Save up to 15 preset settings for project repeatability.
- Optimal RPM Settings: 7 material types and 22 tool selections guide you to the best performance.
- Powerful Brushless Motor: 1.5HP motor with 120V/240V options for consistent power.
- Durable and Adjustable Work Surface: 20" x 14" cast iron table tilts 90° left and right.

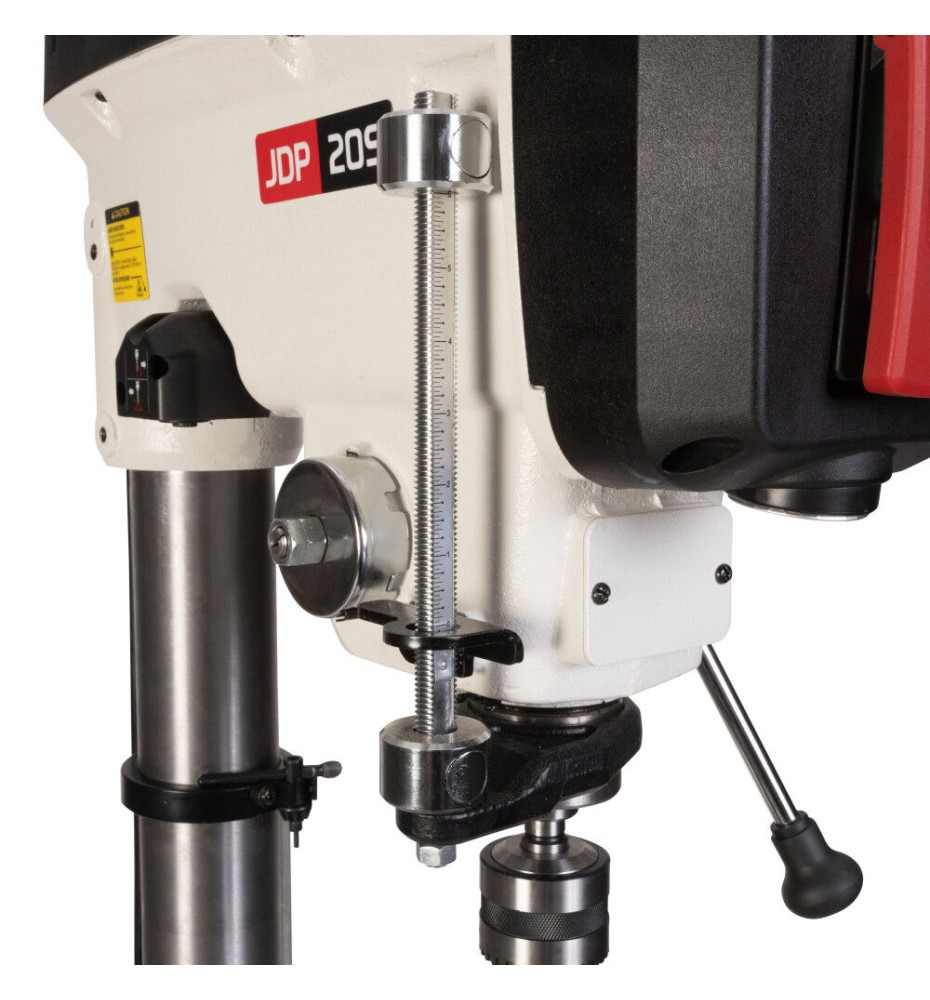

- Precision Depth Control: Integrated electronic and manual depth stops ensure consistent results.
- Speed Adjustments: Adjust RPM from 150 to 3000 with ease using rouchscreen or variable speed knob.
- Enhanced Safety Features: A safety-key main switch and paddle-style on/off button offer peace of mind.
- Visibility and Accuracy: Equipped with crosshair lasers and LED lighting for perfect alignment
- Chuck Size is 5/8 Inch. Chuck distance to base is 42.9 Inches. Chuck distance to table is 24 Inches.
- Spindle distance to base is 46.45 Inches. Spindle distance to table is 27.6 Inches. Spindle travel is 6 Inches. Column diameter is 3.35 Inches.
SPECIFICATION:
| Specification | Details |
|---|---|
| Brand Name | JET |
| Assembled Weight (lbs) | 220 |
| Country of Origin | China |
| MFG Part # (OEM) | JT1-2060 |
| Material | Cast Iron |
| Package Contents | Machine only |
| Product Condition | New |
| Restrictions | CA Prop 65 |
| UPC | 019907897750 |
| Voltage | 120/240V |
| Warranty Type | 5 Years |
| Weight (lbs) | 275 |
