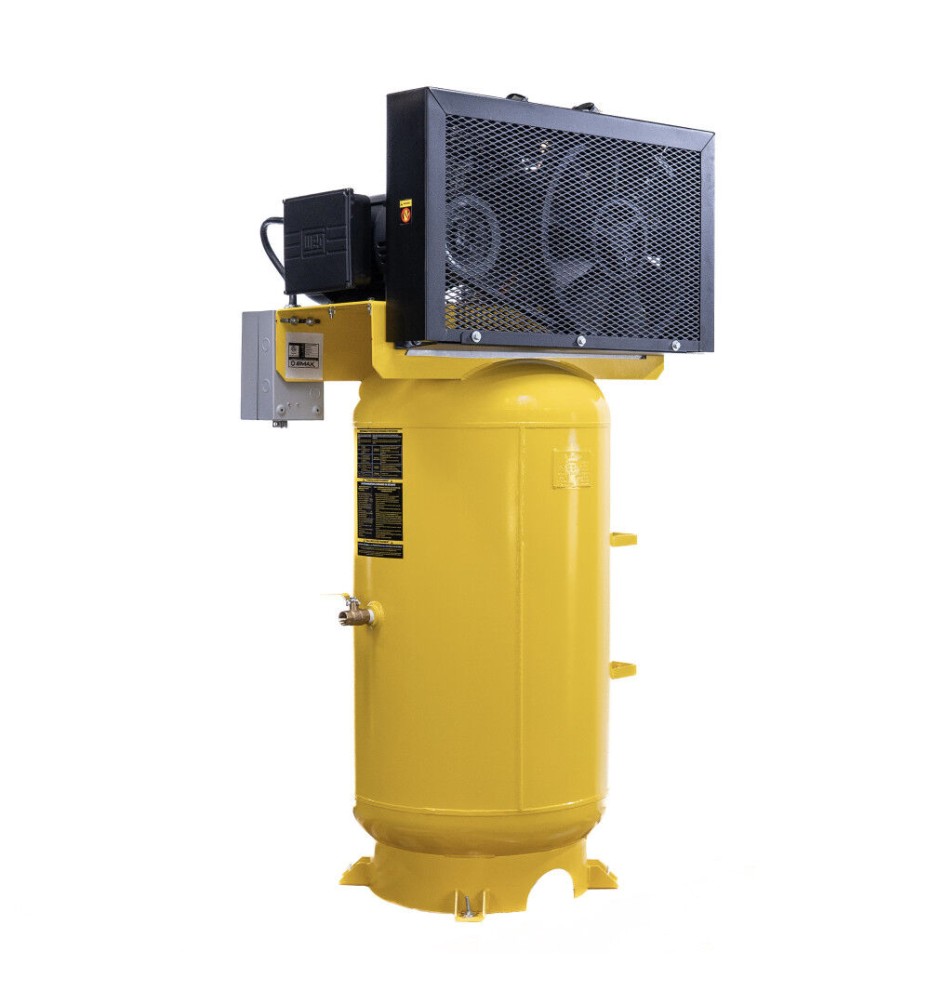

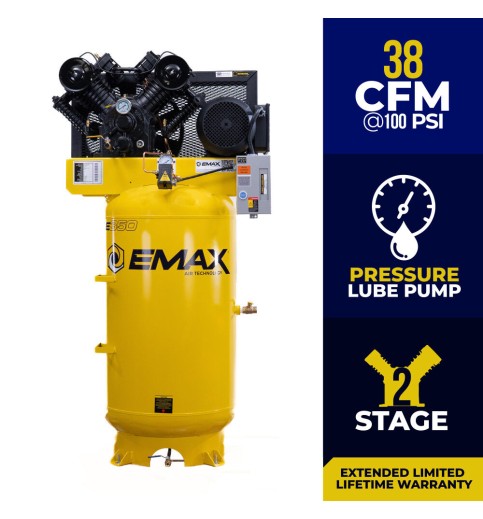

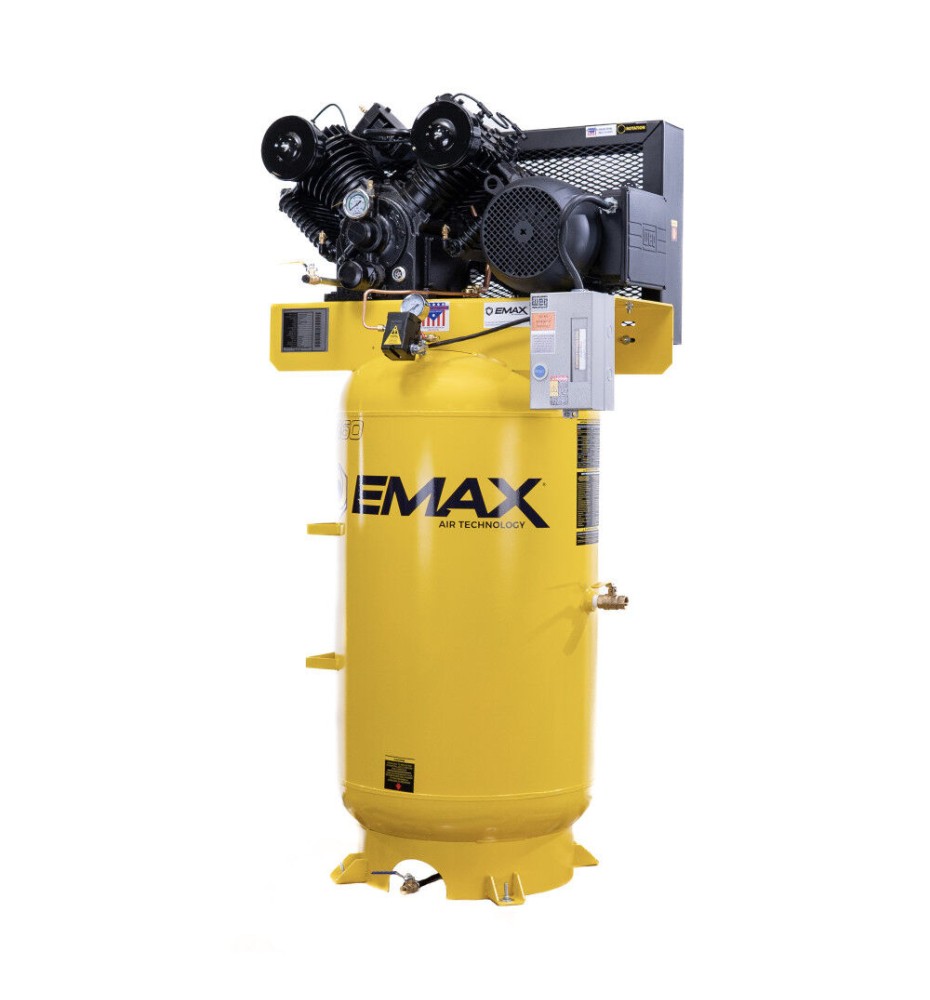

EMAX 80 Gallon 175 Psi 10HP Vertical Air Compressor
- Brand: EMAX
- Product Code: EI10V080V1
- Availability: In Stock
EMAX 80 Gallon 175 Psi 10HP Vertical Air Compressor
Our industrial series offers all the same quality and durability as our plus series without all the extra cost of added features. We offer this series so that anyone can afford to have an EMAX compressor. EMAX industrial 10 P 2 stage V4, 1 Phase vertical 80 gallon. Piston air compressor is designed for up to 70000 hours of commercial or industrial use with proper maintenance. This unit delivers 38 SCfm at 100 Psi, top Psi of 175. Our unit features industrial ODP electric motors, condor pressure switch, manual ball valve tank drain, powder coated ASME tank 200 Psi rating, all paired with all cast iron 70000 hour. rated patented pressure lubricated reciprocating pump.
Features:
- All steel connecting rods with replaceable rod bearing inserts, this allows our rods to be rebuilt! 99% of our competitors now use "throw-away" aluminum connecting rods in their pumps that have no re-build capability
- Removable 100% cast iron cylinders, these solid cast iron cylinders are more stable under heavy workloads and do not warp from heat
- All cast iron cylinder heads, cast iron heads are more durable and dependable for trouble free operation
- Disc valve design" intake and exhaust valves, disc valves have been around for over 100 years and have been proven to perform
- Top quality compression and oil rings, our rings ensure performance with low oil carry over (1-5 PPM)
- Precision ground pistons machined to tight tolerances ensures low oil carry over
- Premium "non-absorbent" gaskets prevent oil seepage from pump
- Re-usable oil filter
- Oil pressure gauge
- Meets CSA, ASME, ETL standards
SPECIFICATION:
| Specification | Details |
|---|---|
| Brand Name | EMAX |
| Air Volume (CFM) | 38 |
| Amperage (A) | 40 |
| Assembled Weight (lbs) | 766 |
| Average Air Consumption (CFM) | 38 |
| Compressor Design | Vertical |
| Country of Origin | China |
| Horsepower (hp) | 10 |
| MFG Part # (OEM) | EI10V080V1 |
| Material | Solid Cast Iron Pump |
| Maximum Air Pressure (psi) | 175 |
| Maximum Pressure Rating (psi) | 175 |
| Maximum RPM | 1750 |
| Maximum Speed (rpm) | 1750 |
| Package Contents | Air Compressor |
| Phase | Single Phase |
| Product Condition | New |
| RPM | 1750 |
| Restrictions | CA Prop 65 |
| Size | 28 In. Length x 42 In. Width x 72 In. Height x 3/4 In. Tank Outlet Size |
| Tank Capacity (gal) | 80 |
| UPC | 815002012056 |
| Voltage | 230 Volts |
| Warranty Type | 1 Year |
| Weight (lbs) | 766 |
