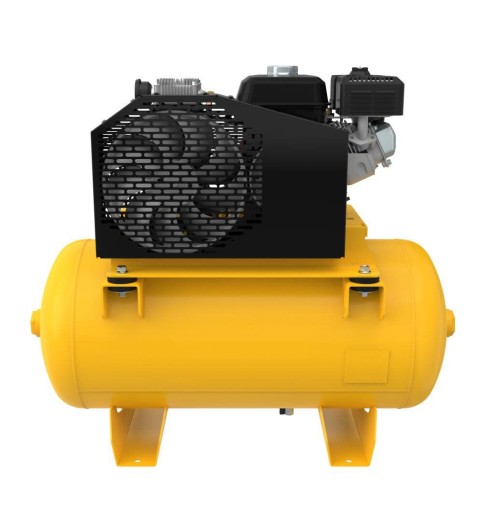

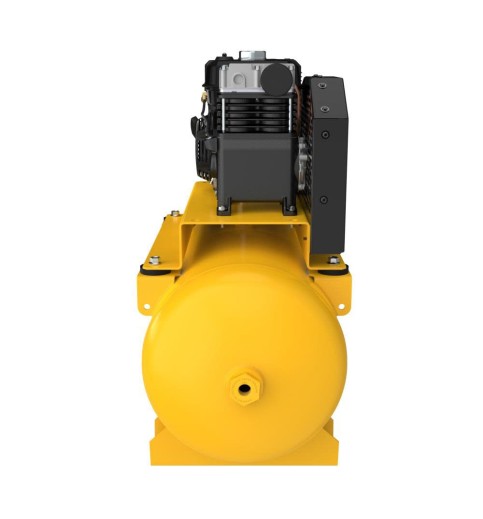

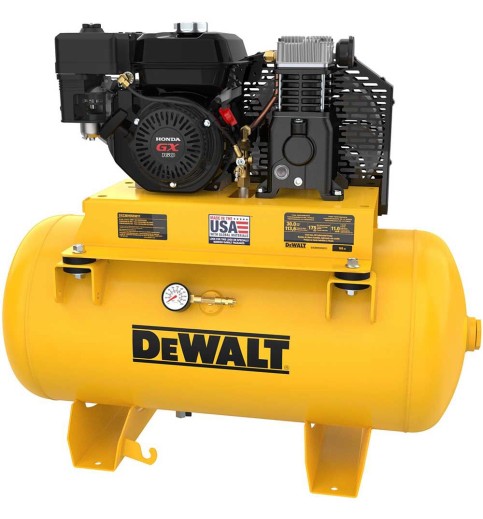

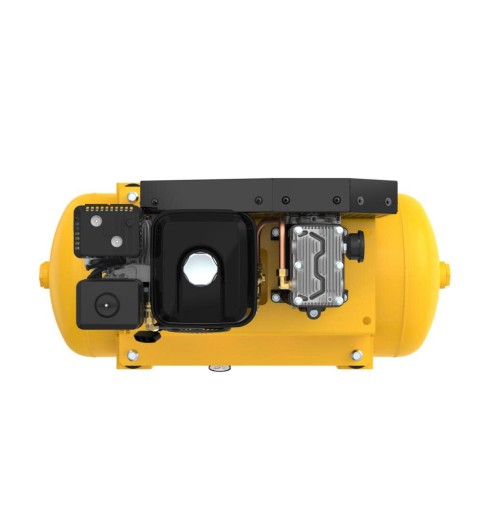

DEWALT 30 Gallon Single Stage Portable Gas Powered Truck Mount Air Compressor
- Brand: DEWALT
- Product Code: DXCMH5593011
- Availability: In Stock
DEWALT 30 Gallon Single Stage Portable Gas Powered Truck Mount Air Compressor
The DEWALT 30 Gallon Honda Powered Truck Mount air compressor is ideal for jobsites and work trucks. Designed with Overhead valve (OHV) for increased efficiency and optimal power transfer. It even comes equipped with low oil shutdown feature and automatic idle control reduces engine RPM when the demand for air in the tank is met. Oil lubricated twin cylinder pump features: Cast iron crankcase, Aluminum head and valve plate to maximize heat dissipation, Poly-v pulley and drive belt provides smooth operation with less vibration and longer life, High efficiency aluminum flywheel provides maximum air flow, and Sturdy metal belt guard provides optimal protection to drive system. Perfect for service truck and field service applications - permanently mount to a truck bed for easy access to compressed air when electricity is not available.
Features:
- Powered by Honda GX160 OHV gas engine.
- Oil lubricated twin cylinder pump features cast iron crankcase, aluminum head and valve plate to maximize heat dissipation.
- Poly-v pulley & drive belt provides smooth operation with less vibration and longer life.
- Oil level sight glass and easily accessible oil fill.
- High efficiency aluminum flywheel provides maximum air flow.
- Sturdy metal belt guard provides optimal protection to drive system.
- Isolated platform design absorbs engine and pump vibration.
- 175 PSI max pressure for optimum tool performance.
- 30 Gallon Tank is ASME certified
SPECIFICATION:
| Specification | Details |
|---|---|
| Brand Name | DEWALT |
| Assembled Weight (lbs) | 276 |
| California Proposition 65 Warning Required | Yes |
| Compressor Design | Horizontal (Stationary) |
| Country of Origin | United States |
| CSA Certified | Exempt |
| ETL Listed | Exempt |
| Height (in) | 53 |
| Horsepower (hp) | 5.5 |
| MFG Part # (OEM) | DXCMH5593011 |
| Maximum Pressure Rating (psi) | 175 |
| Operating Position | Horizontal |
| Package Contents | (1) 30 Gallon Truck Mount Air Compressor |
| Product Condition | New |
| Start Type | Pull |
| Tank Capacity (gal) | 30 |
| Tank Configuration | Single |
| Tank Material | Steel |
| Tank Pressure Gauge | Yes |
| UL Listed | Exempt |
| UPC | 045564655471 |
| Warranty Type | 2 Years Limited |
| Weight (lbs) | 300 |
| Wheeled | No |
