DEWALT 3-in-1 Air Compressor/Generator/Welder
- Brand: DEWALT
- Product Code: DXCMCGW1330
- Availability: In Stock
DEWALT 3-in-1 Air Compressor/Generator/Welder

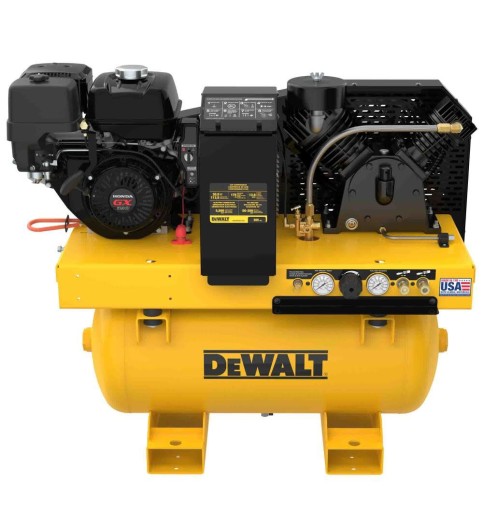

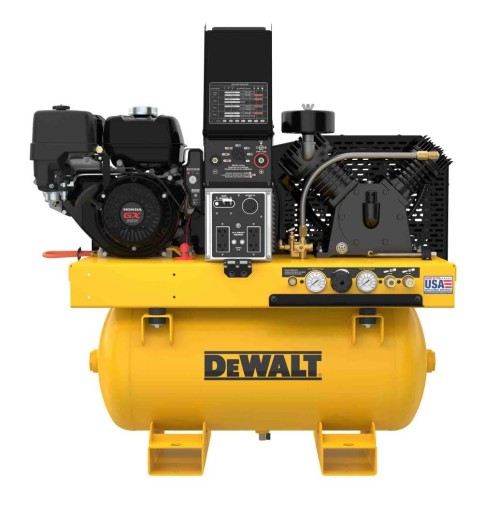

Save space in the truck with a DEWALT 3-in-1. This gas powered unit combines an air compressor, generator and welder into 1 product that is ideal for on-site agricultural, industrial and construction jobs where electricity is not available. This unit features a 2-stage cast iron pump providing enough air to run 2 lines simultaneously. The 5500-Watt generator (6050 surge watt) is equipped with GFCI protected outlets. The 200 amp DC stick welder includes a color coordinated amperage selector dial and toggle switch for easy weld settings. The horizontal 30 gallon ASME tank conveniently mounts to most truck beds. All of this is powered by a dependable GX390 Honda gas engine with electric start driving a flat multi-V groove belt system providing optimum performance for the compressor, generator and welder.
Features:
- DEWALT 3-in-1 30 gallon air compressor-generator-welder supports the products needed for commercial service trucks, remote agricultural field service, construction and industrial applications

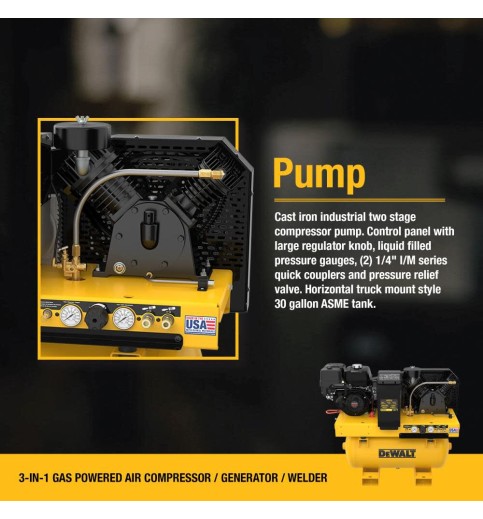

- 2-stage air compressor provides 13.6 SCFM at 100 psi to run the most demanding air tools

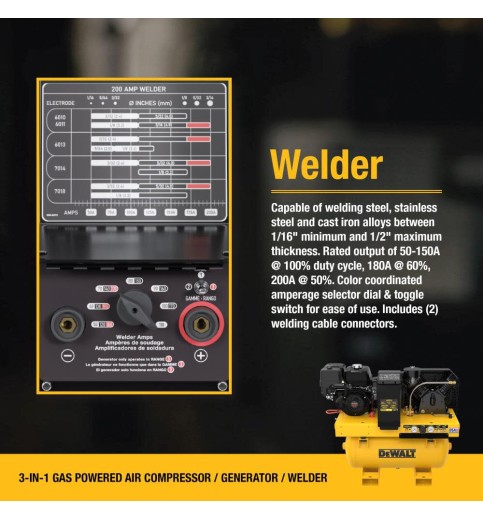

- 50 Amp to 200 Amp DC welder is designed for shielded metal arc welding and is capable of welding steel, stainless steel and cast iron alloys between 1/16 in. minimum to 1/2 in. maximum thickness

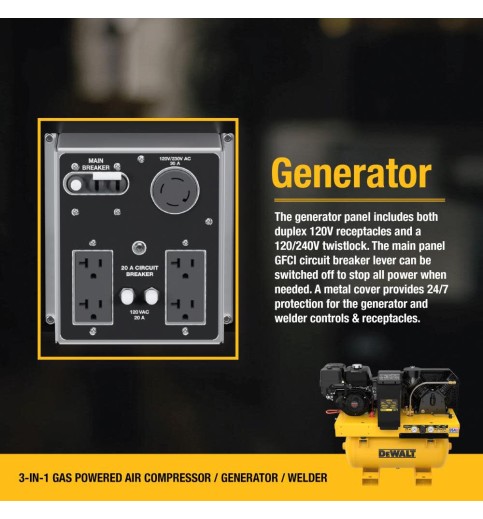

- Generator providing 5500-Watt of continuous power is also incorporated into this system, equipped with a GFCI protected generator panel that includes (2) 120-Volt 20 Amp duplex receptacles and (1) 120/240-Volt 30 Amp twist lock receptacle
- 30 Gallon horizontal truck mount tank meets ASME & CRN requirements

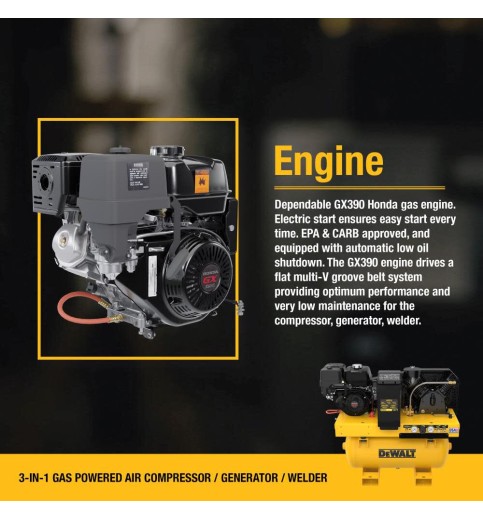

- DEWALT 3-in-1 compressor-generator-welder is powered by an electric start Honda GX390 gas engine and is perfect for those remote jobs when electricity is not available
SPECIFICATION:
| Specification | Details |
|---|---|
| Brand Name | DEWALT |
| Assembled Weight (lbs) | 542 |
| California Proposition 65 Warning Required | Yes |
| Compressor Design | Horizontal (Stationary) |
| Country of Origin | United States |
| CSA Certified | Exempt |
| ETL Listed | Exempt |
| Height (in) | 53 |
| Horsepower (hp) | 13 |
| MFG Part # (OEM) | DXCMCGW1330 |
| Maximum Pressure Rating (psi) | 175 |
| Operating Position | Horizontal |
| Package Contents | 3-in-1 unit |
| Product Condition | New |
| Start Type | Electric |
| Tank Capacity (gal) | 30 |
| Tank Configuration | Single |
| Tank Material | Steel |
| Tank Pressure Gauge | Yes |
| UL Listed | Exempt |
| UPC | 045564651930 |
| Warranty Type | Limited |
| Weight (lbs) | 542 |
| Wheeled | No |
