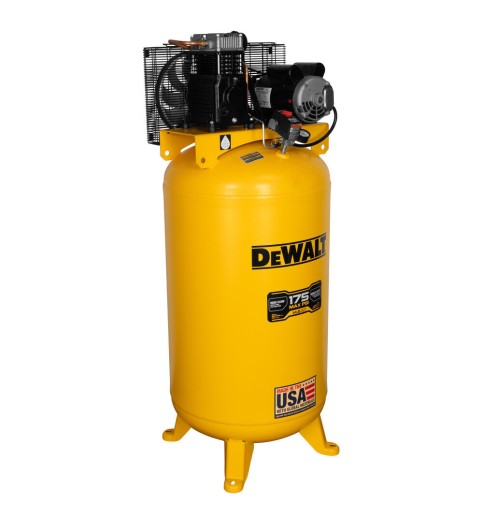

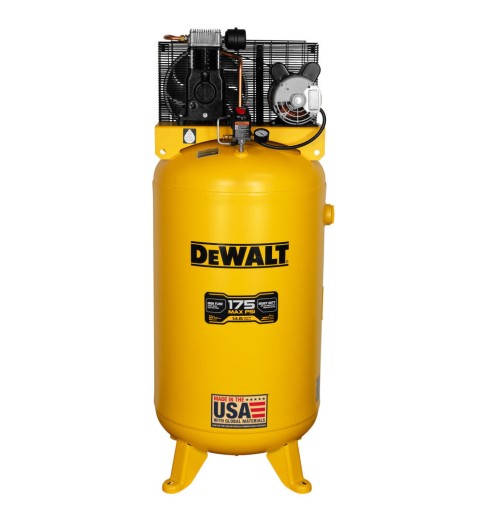

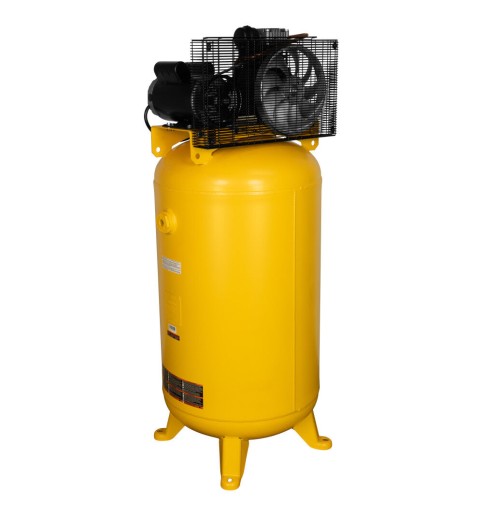

DEWALT 80 Gallon Oil Lubricated Air Compressor High Air Flow, 175 Max PSI, 5 HP
- Brand: DEWALT
- Product Code: DXCM805.COM
- Availability: In Stock
DEWALT 80 Gallon Oil Lubricated Air Compressor High Air Flow, 175 Max PSI, 5 HP

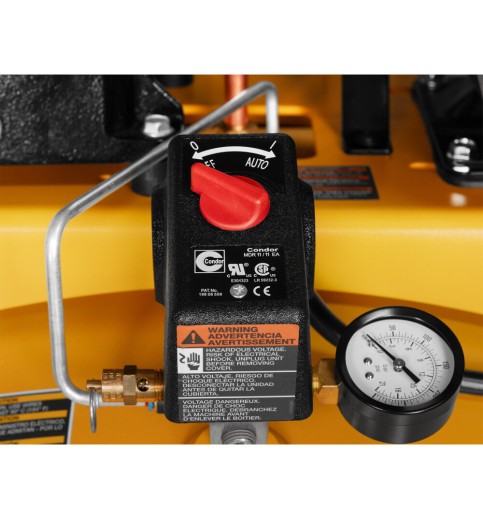

The DEWALT 80 Gallon Stationary Electric Air Compressor provides 175 MAX PSI seen typically with 2-stage performance. Delivering 14.6 SCFM at 90 PSI allows for quick recovery and longer air tool run time. The Heavy-Duty, spread volt induction motor is designed to operate between 208-Volt to 230-Volt. It is also equipped with a pressure gauge, on/off switch and Poly-V belt drive system for smoother operation.
Features:
- Delivers 175 PSI max pressure and 14.6 SCFM @ 90 PSI
- Dual voltage operates in both 208V and 230V applications
- 80 gallon tank provides more air for longer air tool run times
- Poly-v-pulley and drive belt provides smooth operation with less vibration

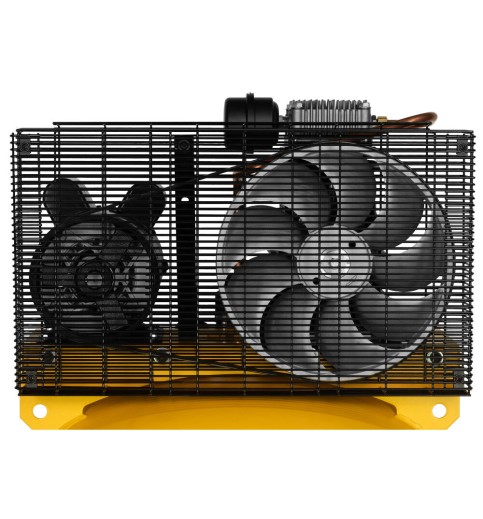

- High efficiency aluminum flywheel provides maximum air flow and lower start-up Amp due to less starting inertia
- Aluminum head and valve plate to maximize heat dissipation
- High grade stainless steel valves
- Large capacity 80 gallon ASME (American Society of Mechanical Engineers) air receiver provides more air for longer run times on air tools such as ratchets, impacts, spray guns, hammers, etc.
- Superior O-ring seals to eliminate oil leaks
SPECIFICATION:
| Specification | Details |
|---|---|
| Brand Name | DEWALT |
| Amperage (A) | 20 |
| Assembled Weight (lbs) | 321 |
| California Proposition 65 Warning Required | Yes |
| Compressor Design | Vertical |
| Country of Origin | United States |
| CSA Certified | Yes |
| ETL Listed | No |
| Height (in) | 68 |
| Horsepower (hp) | 5.0 |
| MFG Part # (OEM) | DXCM805.COM |
| Maximum Pressure Rating (psi) | 175 |
| Operating Position | Vertical |
| Package Contents | Air Compressor |
| Package Depth | 35 |
| Package Depth UOM | INH |
| Package Height | 68 |
| Package Height UOM | INH |
| Package Weight | 321 |
| Package Weight (lbs) | 321 |
| Package Width | 36 |
| Product Condition | New |
| Tank Capacity (gal) | 80 |
| Tank Configuration | Single |
| Tank Material | Steel |
| Tank Pressure Gauge | Yes |
| UL Listed | Yes |
| UPC | 045564647728 |
| Voltage | 230 |
| Warranty Type | 1 Year Limited |
| Weight (lbs) | 321 |
| Wheeled | No |
