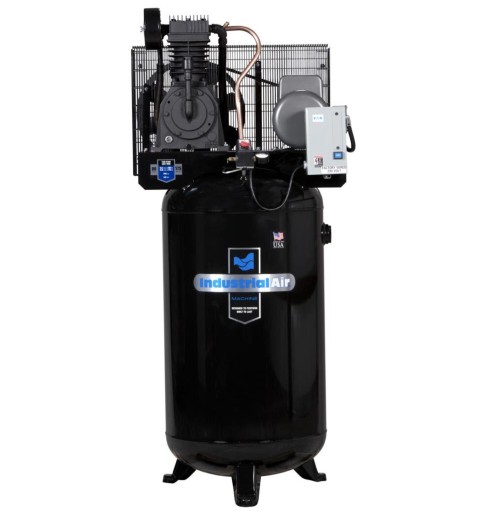

Industrial Air Compressor 5 HP 80 Gallon 2 Stage Cast Iron
- Brand: Industrial Air
- Product Code: IV5018055
- Availability: In Stock
Industrial Air Compressor 5 HP 80 Gallon 2 Stage Cast Iron
Industrial Air 80 Gallon compressor has a large enough capacity to operate multiple air tools at the same time. It generates up to 14.6 CFM at 175 PSI for superb performance. The uniquely designed metal belt guard improves pump cooling by up to 60 degrees, and the compressor features a 240 Volt, 5.2 HP motor that is equipped with a pre-wired magnetic starter.
Features:
- 5.2 HP industrial-class motor with pre-wired and mounted magnetic starter to save time
- 175 Max PSI can operate multiple devices at once
- Delivers 15.3 CFM at 100 PSI and 14.6 CFM at 175 PSI
- Cast-iron, large-capacity, 80 Gallon ASME tank
- 2-stage, cast-iron compressor pump
- Uniquely designed metal belt guard improves pump cooling by as much as 60 degrees Fahrenheit over standard belt guards
- Made in USA of domestic and global components
SPECIFICATION:
| Specification | Details |
|---|---|
| Brand Name | Industrial Air |
| Air Compressor Pump Design | Oil Lubricated |
| Amperage (A) | 24.0 |
| Assembled Weight (lbs) | 613.0 |
| California Proposition 65 Warning Required | Yes |
| Color | Black |
| Compressor Design | Vertical |
| Country of Origin | United States |
| CSA Certified | Yes |
| ETL Listed | Yes |
| Full Roll Cage | No |
| Handle Included | No |
| Height (in) | 76.0 |
| Horsepower (hp) | 5.0 |
| Length | 38 in |
| Lock-on Switch | No |
| MFG Part # (OEM) | IV5018055 |
| Maximum Pressure Rating (psi) | 175.0 |
| Operating Position | Vertical |
| Package Contents | air compressor |
| Phase | 1 |
| Product Condition | New |
| Side Handle | No |
| Switch Type | pressure |
| Tank Capacity (gal) | 80.0 |
| Tank Configuration | Single |
| Tank Material | steel |
| Tank Pressure Gauge | Yes |
| UL Listed | Yes |
| UPC | 846212008102 |
| Voltage | 240 |
| Warranty Type | 2 Years Limited |
| Weight (lbs) | 613.0 |
| Wheeled | No |
